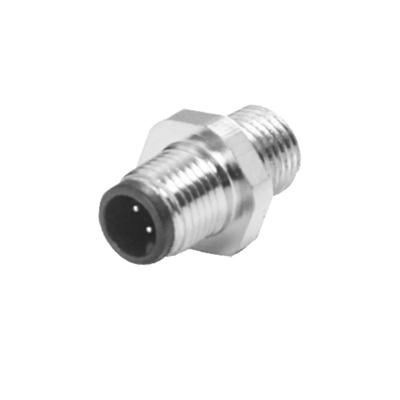

3P TO 4P Male Socket Flange Base With DIP Solder Contacts Connector

Part No.:M5-ZXX04

Conn Spec.:M5, DIP Solder Type

Packing:PE.Bag/Tray Packing

Delivery Time:10~15Days

ROHS Compliant

INQUIRE NOW

Product Details

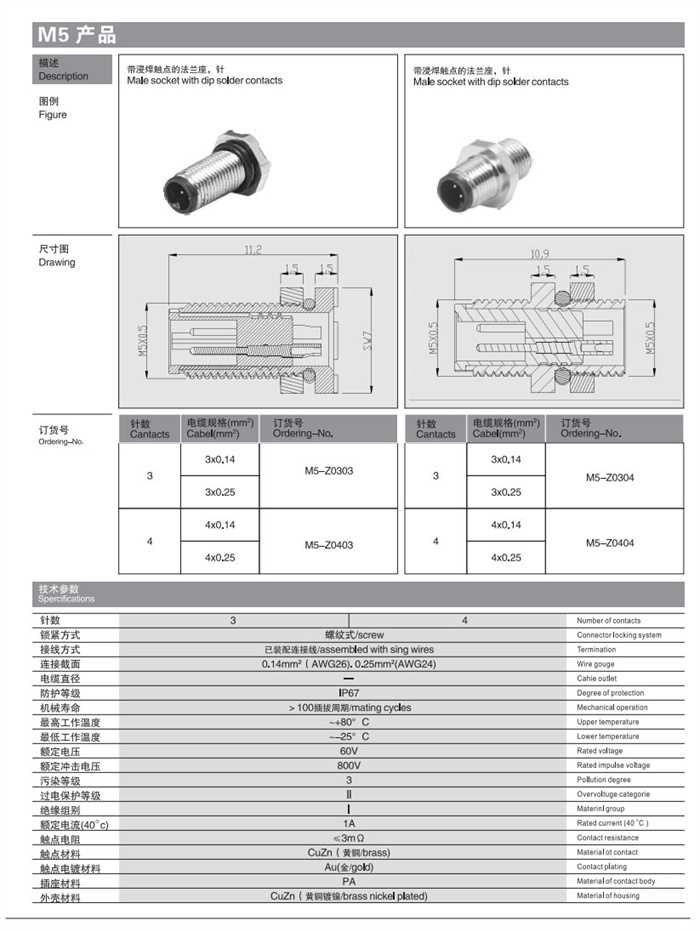

Datasheet

FEATURES

• Type M5/M6/M8/M12, DIN can be choose.

• Available in options sizes: 2positions~12positions

• Contact type:DIP/solder type

• Contact Material: Brass/Phospher bronze

• Contact Plating: Selective Tin/Gold Plating over Nickel

----------------------------------------------------------------------------------------------------------------
