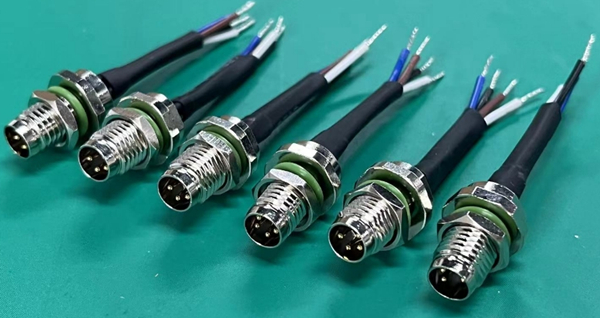

What is an M8 connector?

M8 connectors are commonly used in industrial environments as sensor and actuator connections.

They have an 8 mm locking thread, smaller than M12 connectors, making them ideal for applications that

require a lightweight connector or have limited space.The M8 connector plays a crucial role in a wide range

of industries, from industrial automation to automotive applications due to its design and functionality,

as well as its compact size and reliable connectivity.

Typically used in harsh environments exposed to moisture, dust, and vibration. The M8 connector features a

sealed design, with a waterproof and dustproof rating of up to IP67.
Another major advantage of the M8 connector is the reduced setup time, as there is no need to install and

 maintain wiring systems.

Advantage:

1.High Performance: Since it uses dual power stage chips, its performance is stronger than traditional single

power solutions.

2.Low Power Consumption: The circuit is designed for low power, allowing the system to handle peak loads of

up to 60W without harming user devices.

3. High Reliability: The architecture, composed of multiple redundant components, provides solid and reliable

 protection, effectively preventing failures.

4. Low Cost: By saving a lot of energy and space, costs are reduced, achieving better value cost.

5. Easy Installation/Maintenance: By eliminating the need for expensive hardware and software support

environments, users can deploy it simply and quickly anywhere.

Application:

■Photoelectric sensor    ■Industrial camera    ■Industrial machinery  ■Visual sensor

■Medical instruments   ■Robot     ■Power system     ■Electronic Device System

HONSHI support to customize M8 cable assembly by projects design.

The specifications for M8 cables are as follows:
M8 4-core, 8-core shielded type, pre-molded PVC or PUR material
Cat 5e SFTP Ethernet cable
Optional cable materials: oil-resistant, hydrolysis-resistant, UV-resistant
Rated voltage: 60V, 30V
Conductor size: 0.25mm² (AWG 24)
Cable outer diameter: 4.5mm or 5mm
