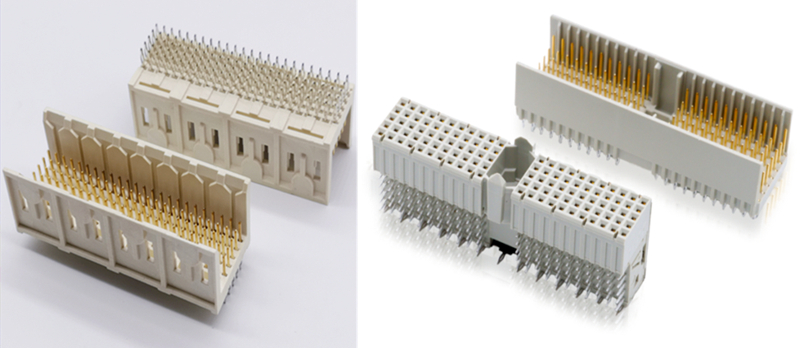

High-speed and Stability 2.0mm pitch CPCI board to board connector connectivity solution

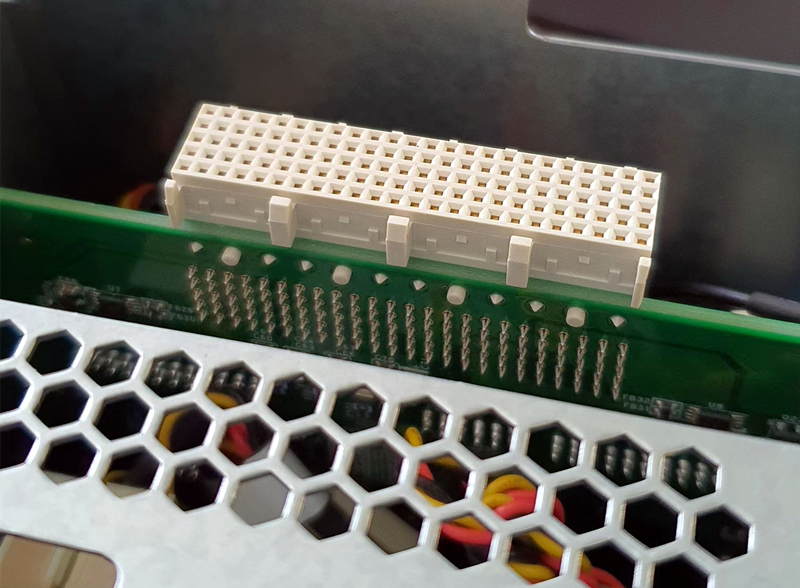

2.0mm pitch CPCI high-speed BTB connector is a versatile, cost-effective board-backplane solution for today's high-performance, high-density applications.CPCI connectors are Hot Swap, high openness, and high reliability.The most prominent and attractive feature of CPCI technology is Hot Swap, a technique for pulling out or inserting a functional template without disrupting the normal operation of the system, when there is no power loss in the operating system.Mainly used in industrial automation and control, telecommunications, test and measurement,medical equipment and power system relay protection.

Product Features：

1 High performance

Optimal performance with multi-line signaling, plus two of shielding;

2 High Safety and Stability

Three-stage sequential fit for front and rear hot-swap applications in 1.5 mm increments;

3 Excellent design

Superior connector contact design provides a unified signal path;

4 Reliability

Supports hot-swap, high openness and high reliability;

5 Product Variety

The connectors can be expanded to A-type, B-type, AB-type, C-type and other types of mating methods, with or without shielding, but also different pin lengths and pin lengths, the choice is more abundant.

Technical Parameters:

Rated current: 1A AC/DC

Rated voltage: 500V AC/DC

Operating Temperature: -40°~+105

Contact resistance: 20mΩMax
