POGO Pin, also called  Spring-Loaded pins,Spring-Loaded Contacts, or Spring probes, that’s high precision

machined pin contacts, providing a highly-reliable interconnect solutions.we specialize in the production

of machined pins,POGO Pin series with complete types and superior quality.

There are various ways to solder Pogo pin with PCBs in different configurations, depending on the construction

 and mounting needs of the pogo pins.

Here are a few common installation methods:

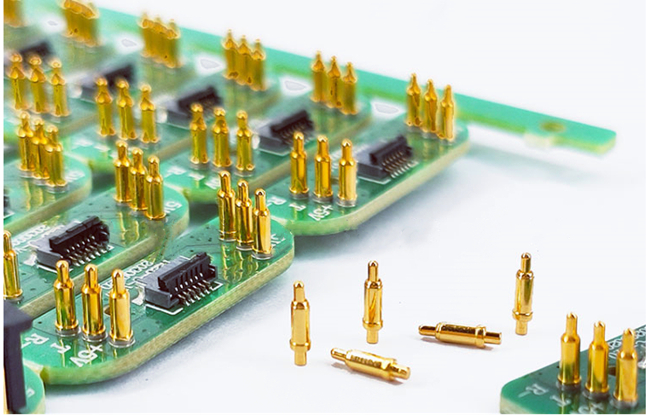

Surface Mount,also called SMD or SMT:

Spring Pogo pin are usually mounted in a stable manner, and the bottom of the barrel is designed so that it can be

 packaged vertically or horizontally, which makes soldering to the PCB much easier. There are Vertical SMD soldering

 the bottom for PCB,and horizontal side SMD soldering for PCB by different space design.

For the bottom of the plunger or tube is a flat bottom design, welding can be performed in this way, which is more stable

in application.

Straight solder tail installation,also called Through-hole

This method is suitable for pogo pins insert PCB directly, and this design facilitates soldering.

It’s more stable via through-hole soldering in PCB.The Pin tail can be customized based on flexible design.

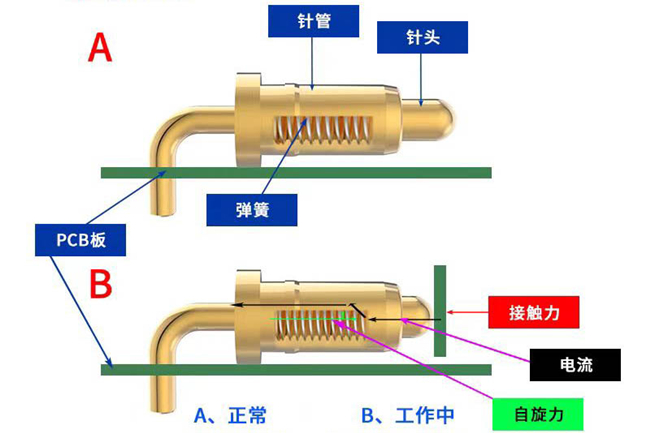

The another type is the Tail Bend Plug-in Package, also call right-angle through-hole which gives the Pogo pin

 spring thimble more options in terms of space utilization.

Floating Installation:

This mounting method is mainly used on connectors with a double-active design and is suitable for connections without soldering pressure.

It allows engineers to have more space flexibility when making bi-directional board-to-board connections.
