What’s high-reliability Micro Coaxial KEL Cable Assemblies?

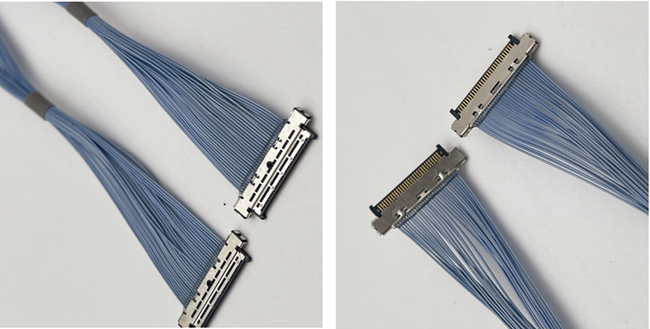

KEL cable assembly of the USL series with pitch 0.4 mm, cable especially designed for high speed LVDS applications

/LCD display control.

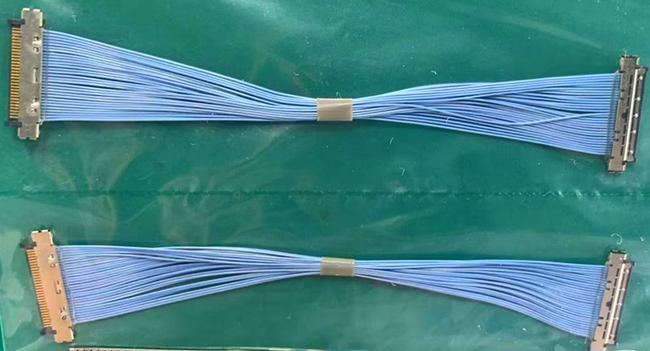

Technical specifications: side 1: 30-pin IDC connector, straight with pitch 0,4 mm

side 2: 30-pin IDC connector, straight with pitch 0,4 mm

strands AWG42, Micro-Coax, configruation 1:1

Advantages:

extremely small design, counter part on PCB with max. installation height of 1.00 mm

safe screening via metal frame

customized solutions on request

What is Micro Coaxial Cable?

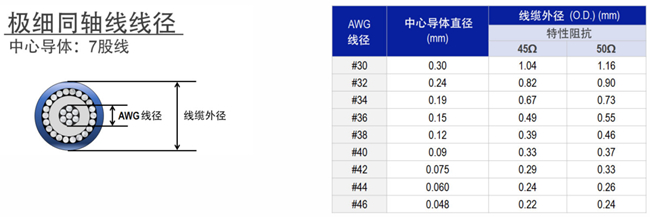

The size of the center conductor used in the coaxial cable adopts the American Wire Gauge (AWG) standard, and the larger

 the AWG number, the smaller the size of the center conductor.

In general, coaxial cables with an outer diameter (OD) of 1 mm or less are referred to as "micro-coaxial" cables. Ultra-thin coaxial

 cables are widely used for signal transmission between internal module boards of personal computers, tablet computers, smart phones

 and other equipment, as well as signal transmission between precision instruments such as medical, industrial, automotive and aviation.

FEATURES

• OEM Micro Coaxial Cable with Electronic Wire#30~#46AWG

• Multiple wires assembly mating design are available

• Custom wires lengths, shielding, terminals or connectors options

• Wire gauges, jackets,Micro coaxial connector and custom markings are available.
